Display
Screen Size
7″ TFT-LCD, backlight LED
Contrast Ratio
800:1
Response Time
11 ms
Resolution
1280 x 800 (WXGA)
Brightness
400 nit
Viewing Angle
89° Horizontal/ 89° Vertical
Aspect Ratio
16:10
Color Depth
16 million colors
Connections
SDI Video Input
1 BNC Input
Supports: HD-SDI, EX-SDI, EX-SDI 2.0, EX-SDI 4MP
VGA Video Input
1 VGA Input
Supports up to 1600 x 1200
DC12V Output
1 DC12V – 500mA Output
Analog Video Input
1 BNC Input
Supports: Standard Analog/CVBS, CVI, TVI & AHD
RS-485 Input
1 RS-485 (+/-)
Multiple Protocols Supported
HDMI Video Input
1 HDMI Input
Supports up to 1920×1080 @ 60fps
Audio
1 Audio In (3.5Ø Earphone Jack)
1 Audio Out (3.5Ø Earphone Jack)
Menu Control
LCD
Buttons on bezel
Power Requirements
Type
Rechargeable Lithium Ion Battery (Includes Battery Charger)
Battery Voltage
11.1V (working), 12.6V (peak)
Power Supply
12.6V – 19.A Battery Charger
Battery Capacity
5460mAh (60.61Wh)
Battery Life
6~8 Hours (w/ 100% charge)
Physical
Product Dimensions
9.45” x 6.03” x 1.96” (L x W x H)
241mm x 153.4mm x 50mm (L x W x H)
Product Weight
3.35 lbs (1.51 kg)
Materials
Monitor
Polycarbonate Housing w/ Rubberized Protective Sides
LCD Protective Front
Light weight tempered glass
Mounting
Mounting Hole Pattern
75mm (2 holes only)
Environmental
Operating Temperature
35° to 100° F (2° to 38° C)
Operating Humidity
0% to 90% RH

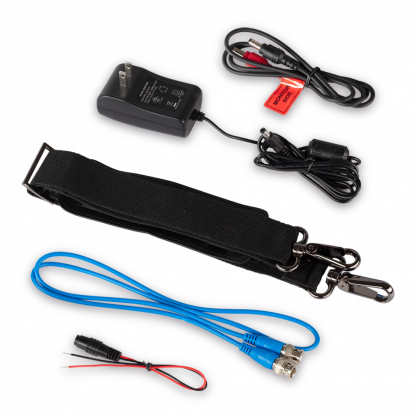

What’s Included
Protective Carrying Bag
Neck Strap
Battery Charger
DC12V male-to-male cable
DC12V pig-tail
Coax test cable – 3ft
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More
The Ultimate Test Monitor for Coax Based CCTV Cameras!
CE-LCD7-TEST Spec Sheet
