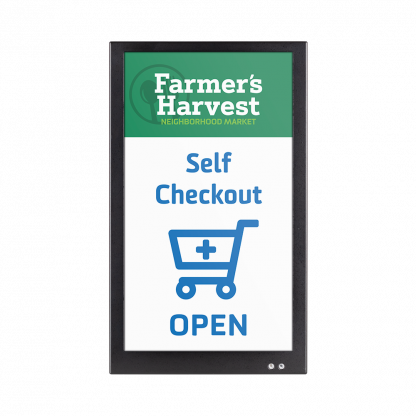

Introducing the Connect LCD.
It’s time to connect with your audience.
Attract attention and engage customers, with Connect LCDs from Clinton Electronics. Connect LCDs are a perfect option for those looking to add digital signage to their store or business. Connect LCDs are perfect for advertising the latest sale, notifying customers of curbside pickup locations, or other informational signage.

Display
Screen Size
13.3″
Contrast Ratio
800:1
Response Time
25 ms
Resolution
1080 x 1920
Brightness
800 nit
Viewing Angle
89° x 89° x 89° x 89°
Aspect Ratio
9:16
Color Depth
16.7 million colors
Menu Control
LCD
IR Remote
Connections
Network
1 RJ45 Gigabit Ethernet Port
Built-in Wifi (2.4GHz)
Alarm Input
2 Terminal Block Inputs (+/-)
USB
2 USB Ports
(only used for USB mouse during setup)
System Requirements
Built-in Digital Signage Player
Registered Clinton Connect account
WiFi or Ethernet network w/ Internet access (minimum 2 Mbps download speed)
Digital Signage Software
Windows PC or Mac w/ internet access
Google Chrome, Microsoft Edge or Safari internet browser
Power Requirements
Type
DC24V
Power Consumption
DC24V: 24 Watts (1.0 Amps)
Physical
Product Dimensions
7.68″ (W) x 12.89″ (H) x 1.43″ (D)
195.07mm (W) x 327.4mm (H) x 36.32mm (D)
Product Weight
4.55 lbs (2.06 kgs)
Materials
Bezel
Powder-Coated Steel
Mounting
Mounting Hole Pattern
VESA 75 & 100 (M4)
Environmental
Operating Temperature
32° to 104° F (0° to 40° C)
Operating Humidity
0% to 90% RH
Standards
FCC
Part 15B, Class B
RoHS
Compliant
UL
Listed
What’s Included
External WiFi Antenna
DC24V Pigtail Connector
IR Remote w/ 2 x AAA Batteries
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More
