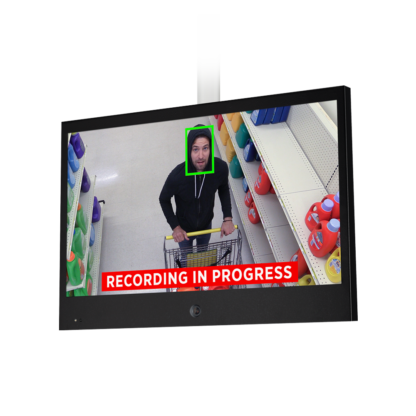

CE-M21E-B

21″ PVM w/ IP Camera

Built-In 2MP Clinton IP Camera w/ 3.6mm (ƒ1.6) Fixed Lens
ONVIF Profile S Conformant Camera: CE-PV40AHN2C
Configurable Face Detection boxes (color, line thickness)
Motion detection triggers flashing LED and/or on-screen banner overlay message (Recording In Progress, Monitoring In Progress, etc…)
1920 x 1080 Resolution / 16:9 Aspect Ratio
250 nit Brightness / 1,000:1 Contrast Ratio
Steel Cabinet
H.264, H.265 & Motion JPEG Compression
1 RJ45 Ethernet Port
VESA 75 & 100
DC24V (Power Supply Sold Separately)
NDAA & TAA Compliant

*Shown with Telescoping Monitor Pole, sold separately

Display

Screen Size

21.5″

Contrast Ratio

1000:1

Response Time

10 ms

Resolution

1920 x 1080

Brightness

250 nit

Viewing Angle

178° x 178° (89° x 89° x 89° x 89°)

Aspect Ratio

16:9

Color Depth

16.7M (8 BIT)

Camera

Image Sensor

1/2.8” SONY Starvis 2.1 Megapixel CMOS Image Sensor

Minimum Illumination

0.2 Lux (Color) / 0.04 Lux (B&W)

Lens

3.6mm (ƒ1.6)

Shutter Speed

1/4 – 1/10,000 sec.

Field of View

84° (Hori.) / 47.8° (Vert.) / 96.4° (Diag.)

Video

Video Codec

H.264, H.265, and Motion JPEG

Bitrate Control

CBR, VBR, or VBR+

1st Stream: 512~10,000 kbps

2nd & 3rd Stream: 512~8,000 kbps

Resolution

1920×1080 (Full HD 1080p) ~ 640×360

Streaming

3 individually configurable streams

Frame Rate

1~30 fps

Storage

MicroSD Card (256GB max recommended) *card not included

Network

Supported Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, SMTP, FTP, UPnP, HTTP, SSL/TLS

Web Viewer

Google Chrome, Edge, Firefox, Safari

Stream Method

Unicast / Multicast

Standards

ONVIF Profile S

Menu Control

Camera

Web Browser (Chrome, Edge, Firefox, Safari)

LCD

IR Remote or Controls on Back

Connections

Network

1 RJ45 Ethernet Port

Power Requirements

Type

DC24V (barrel plug connector)

Power Consumption

18 Watts (0.75 Amps) ±10%

Physical

Product Dimensions

19.8125″ (W) x 13.5625″ (H) x 1.765″ (D)

503.25mm (W) x 344.5mm (H) x 44.885mm (D)

Product Weight

38.6 lbs (17.5 kgs)

Materials

Bezel

Steel (Powder-Coated)

Mounting

Mounting Hole Pattern

VESA 75×75 & 100×100 (M4)

Environmental

Operating Temperature

32° to 104° F (0° to 40° C)

Operating Humidity

0% to 90% Non-condensing

Standards

FCC

Part 15B, Class B

NDAA

Compliant

RoHS

Compliant

TAA

Compliant

ONVIF

Profile S Conformant

What’s Included

2 Screws

DC24V Pigtail Adapter Cable

IR Remote

Warranty & Support

Warranty

3 Year Warranty w/1st Year Advance Replacement
Learn More

Technical Support

Free Lifetime Technical Support via Phone (1-800-549-6393)
