Camera
Image Sensor
1/2.8” SONY Starvis 5.14MP CMOS Sensor
Minimum Illumination
Color: 0.1 Lux
Black and White: 0.02 Lux
Lens
2.8mm (ƒ1.6) True D/N Lens
Shutter Speed
1/4 – 1/10,000 sec. / AUTO
Field Of View
91.9° (Hor.) / 73.3° (Ver.)
LEDs
IR LEDs
2 IR LEDs
White LEDs
2 White LEDs
Deterrence LEDs
1 Red LED
1 Blue LED
Video
Codec
H.264, H.265, and MJPEG
Frame Rate
1~30 fps
Streaming
3 individually configurable streams
Bitrate Control
CBR, VBR, or VBR+
1st Stream: 512~15,000 kbps
2nd & 3rd Stream: 512~8,000 kbps
Resolution
Main Stream: 2592×1944 (5MP, 4:3) ~ 640×360
Second Stream: 1280×720 ~ 640×360
Third Stream: 640×480 ~ 640×360
Network
Network Speed
10/100Mbps
Compatibility
ONVIF Profile S
Supported Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, SMTP, FTP, UPnP, HTTP
Web Viewer
Google Chrome, Edge, Safari, Firefox
Stream Method
Unicast / Multicast (up to 10 connections)
Audio
Audio Compression
G.711 u-law 8KHz
Speaker
1 Built-in Speaker
Audio Streaming
Two-way
Microphone
1 Built-in Microphone
Connections
Network
1 RJ45 Ethernet Port
Edge Storage
1 MicroSD Card slot, 256GB max recommended
*card not included
Alarm I/O
1 Alarm Input
1 Alarm Output
Audio I/O
1 Audio Input
1 Audio Output
Power Requirements
Type
PoE (IEEE 802.3af)
Power Consumption (±10%)
Day: 4.1W
Night: 8.7W (IR/White LEDs + Red/Blue LEDs)
Physical
Product Dimensions
4.72” (Dia.) x 4.56” (H)
120mm (Dia.) x 116mm(H)
Product Weight
1.4 lbs (0.635 kgs)
Materials
Housing
Aluminum
Environmental
Weather Rating
IP67
Operating Temperature
-4° to 122° F (-20° to 50° C)
Operating Humidity
0% to 95% RH
Standards
FCC
Part 15B, Class A
NDAA
Compliant
RoHS
Compliant
ONVIF
Profile S Conformant
What’s Included
2mm Allen Wrench
(4) Mounting Screws
(4) Wall Anchors
RJ45 Weather Resistant Cover
Mounting Template
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More

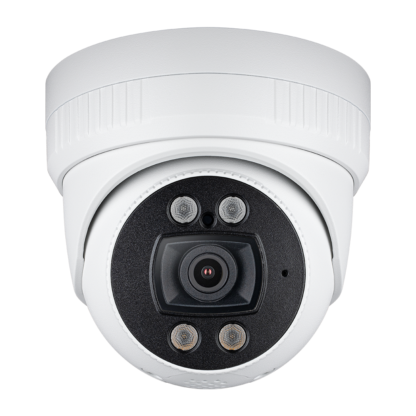

CE-TR30ADRW5C: Active Deterrence IP Camera
