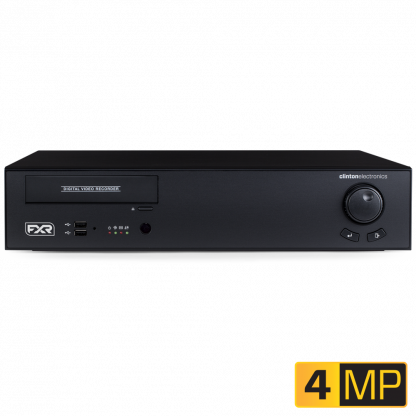

EX-SDI 4MP & 2MP
Record EX-SDI 4MP (1440p) & EX-SDI 2.0/HD-SDI (1080p) on the same DVR.
HD-SDI spot monitor output.
Burn and playback recorded video from the DVR to a CD-RW or DVD-RW.
Upstream Coax Communication (UCC) allows the installer to adjust camera settings through the DVR.
RAID and eSATA configurable.
Use the included brackets to mount into any 19″ rack.
CVMS Mobile App
CVMS Mobile (Clinton Video Management Software) allows you to connect to your Clinton Electronics H2L, Hybrid, FXR, or EX Series DVR from anywhere in the world. This free DVR app for iOS and Android comes loaded with features like multiplex view, video save function, and PTZ/UCC camera control. CVMS Mobile also lets you view live video, search recorded video, configure DVR settings, and save multiple DVRs to the built-in address book.
View Live & Quickly Search
Scroll up or down to search any number of channels all at once with the new color-coded timeline.
DVR Address Book
Connect to and organize multiple Clinton DVRs with thumbnail previews.
PTZ & UCC Control
Control 360° PTZ cameras or make camera adjustments using UCC.
Save Video Clips
Remotely backup video from your DVR to your phone.
Our Advanced Video Monitoring System (AVMS) makes it possible to monitor up to 256 cameras from one window while being able to open multiple windows at once. Utilize Popup Mode to drag windows to remote monitors creating the ultimate video wall. Whether you are connecting to one unit or a thousand, you will find that AVMS gives your organization everything needed to watch live, recorded or archived video. AVMS requires no licensing or maintenance fees and best of all it comes free with every Clinton DVR.
CONNECT TO MULTIPLE DVRs
See video the way you want to see it with customizable screens. Easily drag and drop desired cameras or entire DVRs to populate the screen. The screen can even be a mix of DVR formats; analog, hybrid and EX-SDI. The customized view configuration can be saved for later use.
Motion, time, and event are obvious ways to search— but we’re excited about the new and powerful thumbnail search, which allows you to drill down from a wide range of time to the very second. AVMS also features Mueseum Search, which allows you to draw a box over a specific region of interest, and search that area only for events.
AVMS isn’t just for viewing video, you can also instantly adjust DVR settings. Everything you can do at the DVR, can be done remotely: adjust recording rates, view HDD performace, set event actions and more! All without having to make a service call to the DVR.
EX-SDI 4MP, EX-SDI 2.0, EX-SDI, HD-SDI BNC
Storage and Backup
Maximum Storage Capacity
50 TB (internal storage)
Local: USB Flash Drive (Up to 32GB), CD-RW, DVR-RW
Remote: AVMS Remote Software (Windows PC)
5 HDD Slots
Recording Frame Rate
4MP: 240 FPS Global at 1080p (15 FPS per channel)
2MP: 480 FPS Global at 1080p (30 FPS per channel)
Schedule / Continuous / Motion (Event)
Auto Detected (4MP – 1440p / 2MP – 1080p) by each channel
Highest / High / Normal / Low
Video Output (Main)
1 HDMI (4K) Output
1 VGA Output
1 RCA (Analog)
Video Output (Spot)
1 HD-SDI (1080p) Video Output
1 / 4 / 7 / 9 / 10 / 13 / 16
16 RCA In / 1 RCA Out
PTZ / Keyboard
1 RS485 (+ / -)
8 In / 4 Out
1 eSATA Port for External HDDs (up to 4 additional HDDs)
2 USB Ports (Front)
1 RJ-45 (100/1,000 Mbps)
x1, x2, x4, x8, x16
Quick / Event Search, Repeat Search, Panorama Search, Museum Search
Multiple Protocols Supported (including Clinton, Pelco, Panasonic, Kalatel, etc.)
Proprietary DVR Format
50kbps ~ 8 Mbps, AVMS 1Mbps min.
IR Remote, USB Mouse, or Jog Wheel
2 Admin / 6 Users (DVR and Remote View)
Includes AVMS Remote Software (Windows)
CVMS Mobile App (iOS and Android)
Internet Explorer (Windows)
100 – 220V AC (50/60Hz)
DC48V / 2.75A
Includes Power Cable
50 Watts Max ± 10%
17″ x 17.45″ x 3.5″
431.8mm x 443.23mm x 88.9mm
Product Weight (Without HDD)
14.1 lbs (6.396 kg)
32° to 104° F (0° to 40° C)
20% to 80% RH
AVMS Remote Software Disc
8 Screws for Rack-mountable Brackets
