Display
Screen Size
27″
Contrast Ratio
3000:1
Response Time
8 ms
Resolution
1920 x 1080
Brightness
300 nit
Viewing Angle
178° x 178°
Aspect Ratio
16:9
Color Depth
16.7 million colors
Decoder Input
Codec
H.264, H.265, MJPEG
Frame Rate
1~30 FPS
Camera Channels
Up to 16
Max Decoding Performance
8MP @ 60FPS (ex: 16ch @ 8M = 3.75fps per ch)
2M @ 360FPS (ex: 16ch @ 2M = 22.5fps per ch)
Resolution
352 x 240 ~ 3840 x 2160 (4K)
Decoder Output

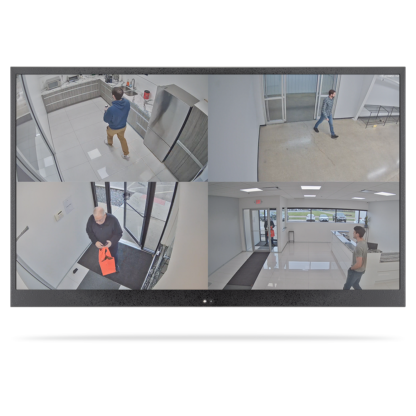

Display Modes
Sequence and/or Multi-view
- 4×4 – 16 channels
- 3×3 Sequence (ch 1~9, 10~16)
- 2×2 Sequence (ch 1~4, 5~8, 9~12, 13~16)
- 1×1 Sequence (ch1~16)
- Custom Sequence Layouts (up to 30 different layouts in sequence)
Custom Layouts
20+ Layout Options – Supports Corridor Video, Panoramic Video, Square (Fisheye) Video
Network
Network Speed
10/100/1000 Mbps
Supported Protocols
IPv4, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, NTP, UPnP, HTTP, HTTPS
Web Viewer
Google Chrome, Edge, Safari, Firefox
Menu Control
LCD
IR Remote
Decoder
Web Browser Only
Connections
Network Input
4 RJ45 Inputs
USB
1 USB Port (Monitor Firmware Updates)
Power Requirements
Type
PoE++ (IEEE 802.3bt) or 24VDC
Power Consumption
PoE++: 39 Watts / DC24V: 30 Watts (1.25 Amps)
Power Supply
Power supply sold separately
Physical
Product Dimensions
24.375″ (W) x 14.875″ (H) x 2″ (D)
619.13mm x (W) x 377.83mm (H) x 50.8mm (D)
Product Weight
12.4 lbs (5.62 kgs)
Materials
Bezel
Steel
Mounting
Mounting Hole Pattern
VESA 100 (M4)
Environmental
Operating Temperature
14° to 122° F (-10° to 50° C)
Operating Humidity
0% to 90% RH
Standards
FCC
Part 15B, Class B
RoHS
Compliant
NDAA
Compliant
TAA
Compliant
What’s Included
DC24V Pigtail Connector
IR Remote
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More
