Connections
Input
4 x RJ45 Input (Data Only)
Output
4 x RJ45 Output (Data and Power)
Power & Data
PoE Standards
IEEE 802.3bt Type 4 / 4PPoE / PoE++ (90 W)
IEEE 802.3at Type 2 / PoE+ (30 W)
IEEE 802.3af Type 1 / PoE (15.4 W)
IEEE 802.3i 10BaseT
IEEE 802.3i 100BaseTX
IEEE 802.3x flow control
Power Output
90W for IEEE 802.3bt, Type 4 (PoE++)
30W for IEEE 802.3at (PoE+)
15.4W for IEEE 802.3af (PoE)
Power Consumption
360 Watts (max) – w/ four connected 90W PD (Powered Devices)
Power Input
100–240 VAC, 50/60 Hz
Maximum PoE Output
360 W total (90 W max. per port)
Heat Dissipation
≤ 90 BTU/hr at maximum load
Maximum Input Current
4.8 A @ 100 VAC / 2.1 A @ 240 VAC
Power Output Voltage
56VDC at Full 90W Output Supported
Data Rate
10/100/1000 Mbps
Physical
Product Dimensions
1.73″ (H) x 11.04″ (W) x 6.57″ (D)
44mm (L) x 280.41mm (W) x 166.87mm (H)
Product Weight
3.4 lbs (1.542 kgs)
Materials
Housing
Steel
Environmental
Operating Temperature
32° to 104° F (0° to 40° C)
Operating Humidity
10% to 90% RH
Standards
TÜV SÜD
Conformant
FCC
Class A
What’s Included
AC110V power cable

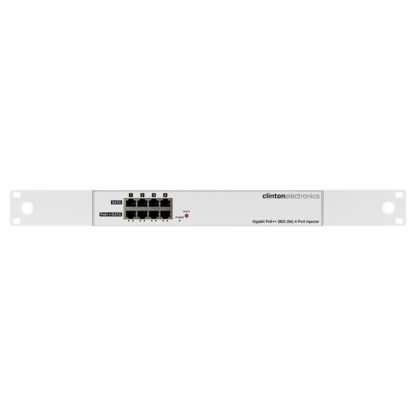

Rack-mount brackets & screws
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More

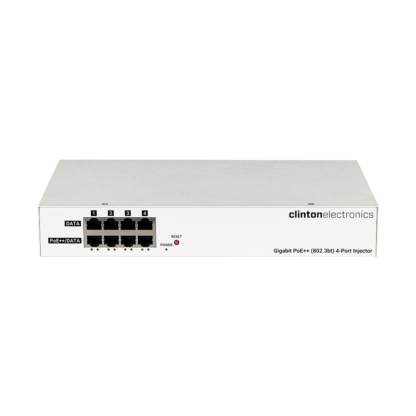

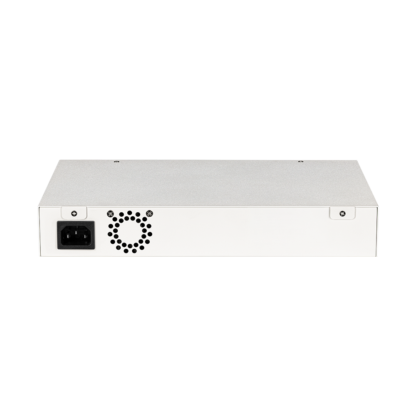

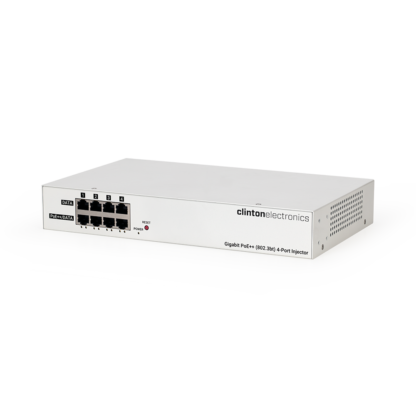

CE-PS400POE: 4-port PoE++ Injector
PoE++ | Up to 90W Over One Ethernet Cable!
CE-PS400POE Spec Sheet
