IP68 WEATHER RATED
Constant exposure to the elements is tough on any camera. Because the BZ series is IP68 weather rated, you no longer need to worry about adverse weather conditions.
DUAL VIDEO OUTPUTS
Get the best of both worlds with 4MP EX-SDI 2.0 and selectable HD Analog video outputs.
HI INTENSITY IR LEDs
One IR LED on the new BZ Series Bullet outputs as much light as eight standard IR LEDs, and the focusing lenses help evenly distribute the infrared light.
DUAL VOLTAGE + RVM
All BZ Series Bullets are DC12V/AC24V and feature Rated Voltage Monitoring (RVM). The RVM LED indicator will illuminate to alert the installer of improper voltage.
EASY INSTALLATION
BZ bullet cameras can be mounted to a variety of Conduit Boxes. Use the mounting hook to affix the camera in place and free both hands for screw fastening.
Camera
Image Sensor
1/2.8” SONY Starvis 5.14MP CMOS Sensor
Scanning System
Progressive Scan
Minimum Illumination
Color: 1 Lux
Black and White: 0.1 Lux
Resolution
Quad HD: 1440p / 4MP
S/N Ratio
More than 52dB (AGC Off)
Shutter Speed
1/30 – 1/30,000 sec. / AUTO
Effective Pixels
2560 (H) x 1440 (V)
Frame Rate
1440p: 30 FPS
1080p: 30 FPS
Lens
Type
Fixed
Field Of View
84.1° (Horizontal)
Focal Range
4mm
True Day/Night
Yes
Max. Aperture Ratio
ƒ2.0
LEDs
IR LEDs
4 High Intensity IR LEDs
White LEDs
2 High Intensity White LEDs
(Motion triggered)
DSP
DSP Version
EXHD 4MP
Menu Control
DIN Port
For use with CE-REMOTE (*CE-REMOTE required for OSD adjustments)
UCC
UCC allows camera adjustments (OSD settings) to be made remotely through a UCC equipped DVR channel
Connections
HD Video Output
1 BNC Output (Black & Gold):
4MP EX-SDI 2.0 / 2MP EX-SDI 2.0, EX-SDI & HD-SDI Selectable
Analog Video Output
1 BNC Output (Green & Silver):
CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Remote Control Input
1 DIN Input
Power Requirements
Type
DC12V or AC24V
Power Consumption
DC12V: 520mA ±10% (LEDs On)
AC24V: 200mA ±10% (LEDs On)
Physical
Product Dimensions
9.25″ (L) x 5.25″ (H)
234.95mm (L) x 133.35mm (H)
Product Weight
2.35 lbs (1065.942 g)
Materials
Housing
Aluminum
Environmental
Weather Rating
IP68
Operating Temperature
-40° to 122° F (-40° to 50° C)
Operating Humidity
0% to 95% RH
What’s Included
Mounting Plate
4 Phillips Screws (M5x25)
4 Allen Bolts (M4x8)
4 Plastic Washers
4 Drywall Anchors
Foam Gasket
3mm Allen Wrench
5mm Allen Wrench
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More

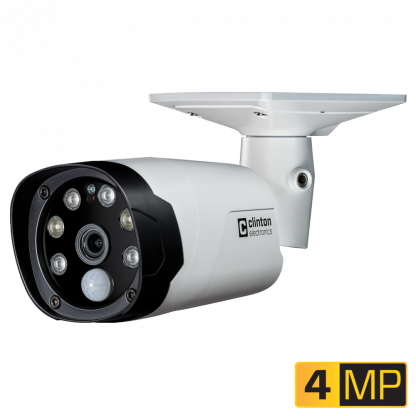

BZ Series Outdoor Bullet Camera
