Camera
Image Sensor
1/2.8” SONY Starvis 2.13 Megapixel CMOS Sensor
Scanning System
Progressive
Shutter Speed
1/30 ~ 1/30,000 sec, / AUTO
Resolution
CVBS (default output), HD Analog: 2MP / Full HD 1080p
S/N Ratio
More than 52dB (AGC Off)
Effective Pixels
1945 (H) x 1097 (V), 2.13 M Pixels
Minimum Illumination
1 Lux (COLOR) / 0.1 Lux (B&W)
Lens
Type
Vari-Focal
True Day / Night
Yes
Focal Range
2.8~12mm
Field of View
92° ~ 28° (Horizontal)
Max. Aperture Ratio
ƒ1.4
DSP
DSP Version
S8
Menu Control
Joystick
Built-in
DIN Port
For use with optional CE-REMOTE
Connections
Video Output
1 BNC Output (Green & Silver):
CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Remote Control Input
1 DIN Input
Power Requirements
Type
DC12V or AC24V
Power Consumption
DC12V: 180mA (2.16 Watts)
AC24V: 80mA (1.92 Watts)
Physical
Product Dimensions
6″ (Dia.) x 4.25″ (H)
152.4mm (Dia.) x 107.95mm (H)
Product Weight
1.45 lbs (0.657 kg)
Materials
Housing
Aluminum
Dome
Polycarbonate
Environmental
Weather Rating
IP68
Operating Temperature
-20° to 122° F (-28.8° to 50° C)
Operating Humidity
0% to 95% RH
Standards
UL
Listed
FCC
Part 15B, Class A
RoHS
Compliant
What’s Included
Torx Wrench (T20 Security)
Test Monitor BNC Lead
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More

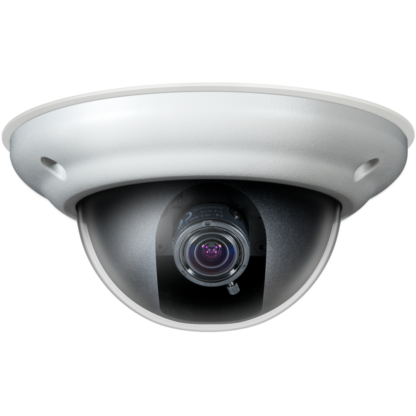

Vandal X: Assembled & Designed in the USA
Vandal X: IP68 Weather Rated Camera
AC24V
Camera Power
-
CE-T12VDC1500
DC12V (1.5 Amp) 1 Camera Power Supply
-
CE-T12VDC5A
DC12V (5 Amp) 4 Camera Power Supply
-
CE-DC12V18
DC12V (20 Amp) 18 Camera Power Supply
-
CE-AC24V18
AC24V (10 Amp) 18 Camera Power Supply
-
CE-T12VDC1000
DC12V (1 Amp) 1 Camera Power Supply
-
CE-T24VAC2000
AC24V (2 Amp) 1 Camera Power Supply
DC12V
-
CE-T12VDC1500
DC12V (1.5 Amp) 1 Camera Power Supply
-
CE-T12VDC5A
DC12V (5 Amp) 4 Camera Power Supply
-
CE-DC12V18
DC12V (20 Amp) 18 Camera Power Supply
-
CE-T12VDC1000
DC12V (1 Amp) 1 Camera Power Supply
Power
-
CE-DC12V16
DC12V (12.5 Amp) 16 Camera Power Supply
-
CE-AC24V4
AC24V (4 Amp) 4 Camera Power Supply
-
CE-AC24V8
AC24V (4 Amp) 8 Camera Power Supply
Remotes
Replacement Parts
-
CE-VXTW
Non-IR Vandal X Replacement Top Cover
This product has multiple variants. The options may be chosen on the product page
