IR SHIELD TECHNOLOGY
New dome design blocks IR LED reflection.
MOTORIZED 5MP LENS
2.8~12mm (ƒ1.4) Motorized True D/N Auto Focus Lens.
DUAL OUTPUTS
Get the best of both worlds with 4MP EX-SDI 2.0 and HD Analog video outputs.
IP68 WEATHER RATED
All Clinton Vandal X Series are IP68 Weather Rated & built to withstand extreme conditions.
FLEXIBLE INSTALLATION
The Vandal X Series is designed to mount to a wide variety of electrical conduit boxes.
30 FPS / 30 FPS WDR
Quad HD 1440p live view @ 30 FPS (30 FPS with WDR turned on).

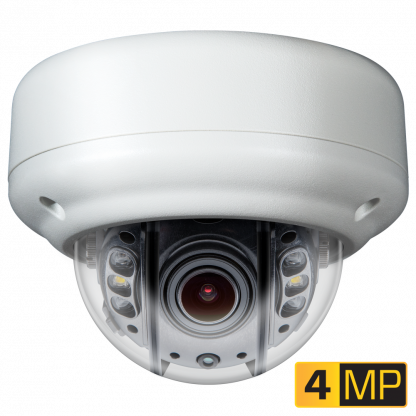

The Ultimate IR Dome Camera
Introducing the best IR Vandal Dome we have ever created. New IR Shield technology from Clinton Electronics nearly eliminates all IR reflection delivering a clear and crisp image at night even when rain or dust are present on the surface of the dome. Not only does this technology offer better night images it reduces service calls due to dirty domes.
IR Shield Technology – a difference you’ll have to see to believe!
So What Exactly Is IR Shield Technology?
IR Shield Technology
IR Shield Technology utilizes a patented molded-in polycarbonate shield that blocks any residual IR light from transmitting through the dome into the camera giving you a clear image even when rain and dust are present on the surface of the dome.
Traditional IR Dome
With traditional IR dome cameras, any presence of rain and dust on the outside surface of the dome cause the IR LEDs to reflect the light back into the dome creating a washed out image and to the end user the appearance of an out of focus camera.
The Dirty Dome Test
Even the dirtiest of vandal domes look "OK" during the day but what happens at night when IR LEDs turn on?
We took a traditional IR dome and an IR Shield dome and put them to the test by hitting them with dirt, dust, and grime. The results are eye opening!
Dirty Traditional Dome
Dirty IR Shield Dome
Focusing Made Easy
Our new Motorized Zoom & Auto Focus equipped cameras now make focusing easy!
Simply set the desired focal distance and let the camera automatically adjust the focus. Zoom and focus adjustments can be made using the built-in joystick or optional CE-REMOTE.
Camera
Image Sensor
1/2.8” SONY Starvis 5.14MP CMOS Sensor
Scanning System
Progressive Scan
Minimum Illumination
Color: 1 Lux
Black and White: 0.1 Lux
Resolution
Quad HD: 1440p / 4MP
S/N Ratio
More than 52dB (AGC Off)
Shutter Speed
1/30 – 1/30,000 sec. / AUTO
Effective Pixels
2560 (H) x 1440 (V)
Frame Rate
1440p: 30 FPS
1080p: 30 FPS
Lens
Type
Motorized Vari-Focal Autofocus
Field Of View
91.4° ~ 32° (Horizontal)
Focal Range
2.8~12mm
True Day / Night
Yes
Max. Aperture Ratio
ƒ1.4
LEDs
IR LEDs
4 High Intensity IR LEDs
White LEDs
2 High Intensity White LEDs
(Motion triggered)
DSP
DSP Version
EXHD 4MP
Menu Control
Joystick
Built-in
DIN Port
For use with optional CE-REMOTE
UCC
UCC allows camera adjustments (zoom/focus & OSD settings) to be made remotely through a UCC equpped DVR channel
Connections
HD Video Output
1 BNC Output (Black & Gold):
4MP EX-SDI 2.0 / 2MP EX-SDI 2.0, EX-SDI & HD-SDI Selectable
Analog Video Output
1 BNC Output (Green & Silver):
CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Remote Control Input
1 DIN Input
Power Requirements
Type
DC12V and AC24V
Power Consumption
DC12V: 800mA ±10% Max (IRs On + Zoom/Focus)
AC24V: 250mA ±10% Max (IRs On + Zoom/Focus)
Physical
Product Dimensions
5.74″ (Dia.) x 4.13″ (H)
145.8mm (Dia.) x 104.9mm (H)
Product Weight
1.75 lbs (793.787 g)
Materials
Housing
Aluminum
Dome
Polycarbonate
Environmental
Weather Rating
IP68
Operating Temperature
-20° to 122° F (-28.8° to 50° C)
Operating Humidity
0% to 95% RH
Standards
FCC
Part 15B, Class A
RoHS
Compliant
What’s Included
Torx Wrench
4 Mounting Screws
4 Wall Anchors
Mounting Template
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More
CE-VX2QHD-WL Overview
IR Shield Technology
Vandal X: IP68 Weather Rated Camera
EX-SDI Explained
HD Over Coax Comparison
Autofocus EX-SDI Cameras
Vandal X: Assembled & Designed in the USA
