CE-X1HD

EX-SDI 2.0 True D/N Box Camera

For the ultimate in versatility, choose a Box camera. Box cameras allow the installer to choose the perfect lens and mounting bracket for the application.

1/2.8″ SONY Starvis 2.13 Megapixel CMOS Sensor
1080p @ 30fps Over RG59 Coax
Uses CS Mount Lenses— Lens Sold Separately
Dual, Selectable Video Outputs: 2MP EX-SDI (EX-SDI 2.0, EX-SDI, HD-SDI) & HD Analog (A_HD, C_VI, T_VI, CVBS)
Top or bottom 1/4″-20 mounting hole for bracket mounting
OSD Menu control via built-In joystick, CE-REMOTE or UCC*
DOL-WDR @ 30fps w/ Simultaneous Analog Output
DC12V/AC24V
NDAA Compliant

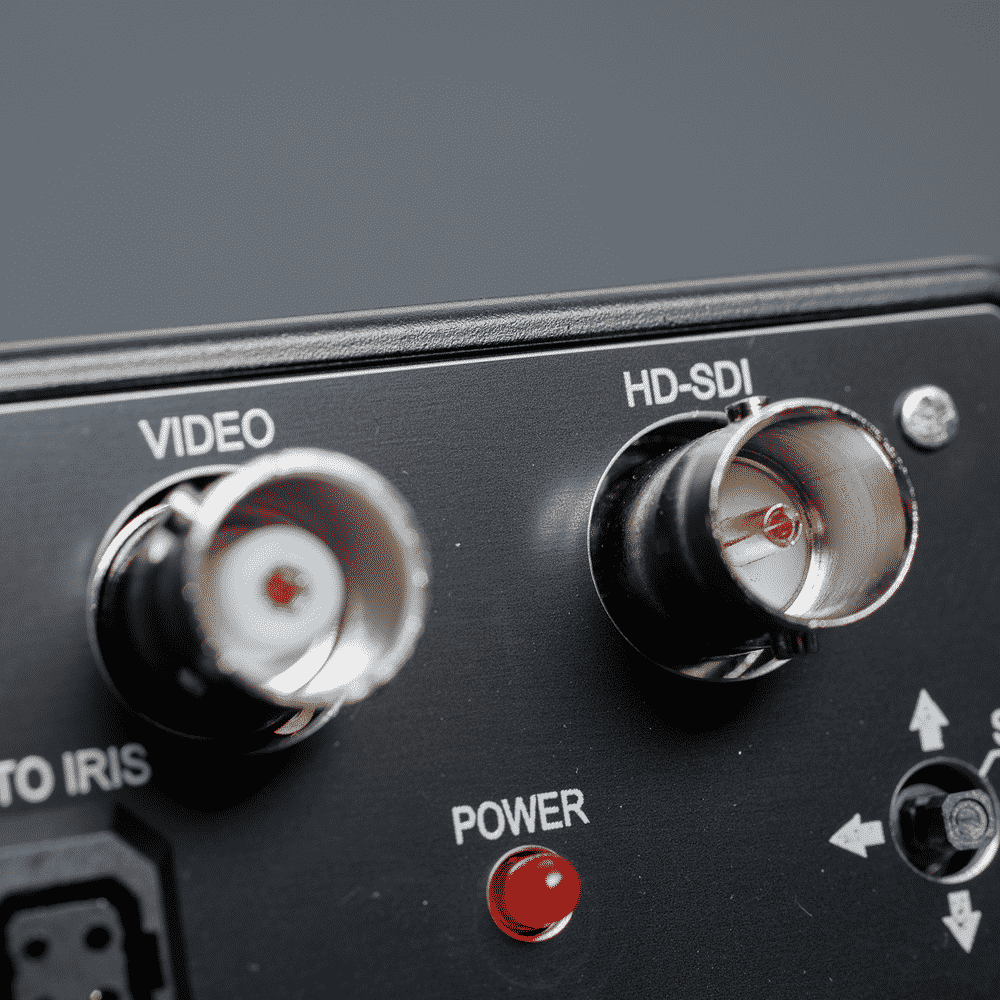

DUAL OUTPUTS

Get the best of both worlds with selectable 2MP EX-SDI and HD Analog video outputs.

DIN JACK

Make adjustments to the camera OSD menu easier by plugging in a CE-REMOTE to the DIN Jack.

Camera

Image Sensor

1/2.8″ SONY Starvis 2.13 Megapixel CMOS Sensor

Scanning System

Progressive Scan

Minimum Illumination

Color: 1 Lux

Black and White: 0.1 Lux

Resolution

1080p

S/N Ratio

More than 52dB (AGC Off)

Shutter Speed

1/30 – 1/30,000 sec. / AUTO

Effective Pixels

1944 (H) x 1092 (V)

Frame Rate

1080p: 30 FPS

720p: 30 FPS

Lens

Mount Type

CS Mount

DSP

DSP Version

EXHD 2.0

Menu Control

Joystick

Built-in

DIN Port

For use with optional CE-REMOTE

Connections

HD Video Output

1 BNC Output (Gold): 2MP EX-SDI 2.0, EX-SDI & HD-SDI selectable

Auto Iris

4 Pin Connection

Composite Video Output

1 BNC Output (Silver):
CVBS, A_HD, C_VI, T_VI Selectable

Remote Control Input

1 DIN Input

Power Requirements

Type

DC12V and AC24V

Power Consumption

DC12V: 4.2 Watts (0.35 Amp)

AC24V: 4.8 Watts (0.2 Amp)

Physical (no lens)

Product Dimensions

4.17” (L) x 2.31” (W) x 2.21” (H)

105.91mm (L) x 58.67mm (W) x 50.8mm (H)

Product Weight

0.53 lbs (0.24 kgs)

Materials

Housing

Aluminum

Environmental

Operating Temperature

14° to 122° F (-10° to 50° C)

Operating Humidity

0% to 90% RH

Standards

FCC

Part 15B, Class A

RoHS

Compliant

Warranty & Support

Warranty

3 Year Warranty w/1st Year Advance Replacement
Learn More

Technical Support

Free Lifetime Technical Support via Phone (1-800-549-6393)
Learn More

EX-SDI Explained

HD Over Coax Comparison

CE-X1HD Spec Sheet

CE-X1HD Installation Guide
