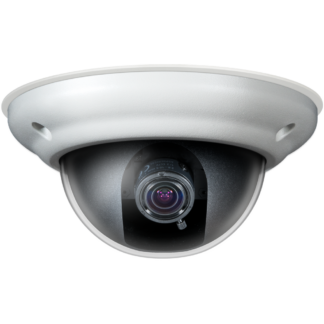

Name: HD Analog IDX
SKU: CE-IDX1HDA

3MP LENS

2.8~12mm (ƒ1.4) True D/N Manual-focus Lens

DUAL OUTPUTS

Get the best of both worlds with dual HD Analog & CVBS video outputs.

FLEXIBLE INSTALL

The IDX mounting plate installs on Single Gang, Double Gang, 3-1/4″ & 3-1/2″, or 4″ Oct/Rd Conduit Boxes.

30 FPS / 30 FPS WDR

Full HD 1080p live view @ 30 FPS (30 FPS with WDR turned on).

Camera

Image Sensor

1/2.8” SONY Starvis 2.13 Megapixel CMOS Sensor

Scanning System

Progressive Scan

Minimum Illumination

Color: 0.01 Lux (Sens-Up x32)

Black and White: 0.001 Lux (Sens-Up x32)

Resolution

Full HD / 1080p (HD Analog)

S/N Ratio

More than 52dB (AGC Off)

Shutter Speed

1/30 – 1/30,000 sec. / AUTO

Effective Pixels

1945 (H) x 1097 (V)

Frame Rate

1080p @ 30 FPS (HD Analog)

Lens

Type

Vari-Focal, Manual-focus

Field Of View

108° ~ 33° (Horizontal)

Focal Range

2.8~12mm

True Day / Night

Yes

Max. Aperture Ratio

ƒ1.4

DSP

DSP Version

HDA

Menu Control

Joystick

Built-in

DIN Port

For use with optional CE-REMOTE

Connections

HD Analog Video Output

1 BNC Output (Green):

TVI, CVI, AHD Selectable

Analog Video Output

1 BNC Output (Yellow):

CVBS

Remote Control Input

1 DIN Input (for CE-REMOTE)

Power Requirements

Type

DC12V and AC24V

Power Consumption

DC12V: 113mA ±10% (1.36 W)

AC24V: 69mA ±10% (1.65 W)

Physical

Product Dimensions

4.8″ (Dia.) x 3.7″ (H)

121.9mm (Dia.) x 93.9mm (H)

Product Weight

0.60 lb (0.27 kg)

Materials

Housing

Plastic

Dome

Polycarbonate

Mounting

Included Mounts

Includes Mounting Plate

Mounts to

Single Gang, Double Gang, 3-1/4″ & 3-1/2″, or 4″ Oct/Rd Conduit Boxes

Environmental

Operating Temperature

32° to 113° F (0° to 45° C)

Operating Humidity

0% to 90% RH

Standards

UL

Listed

FCC

Part 15B, Class A

RoHS

Compliant

What’s Included

Mounting Plate

Mounting Template

BNC Test Cable

4 Mounting Screws

Warranty & Support

Warranty

3 Year Warranty w/1st Year Advance Replacement
Learn More

Technical Support

Free Lifetime Technical Support via Phone (1-800-549-6393)
